Stock code CRP-RH18-20-W

Price: Please Enquire For Details full description

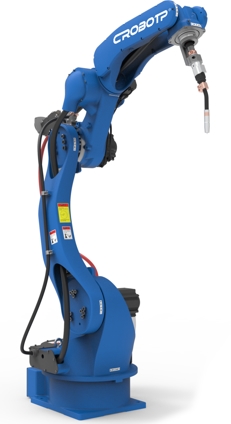

The CRP-RH18-20-W Robot is a reliable, flexible 6-axis robot and very competitively priced. It comes with an integrated MEGMEET Ehave 350AR  welding unit plus torch and all necessary equipment to get your weld production up, running and automated.  It is supplied complete with the robot arm which spans 1.8m in reach and can be installed on the ground or upside down.  The package also contains the robot controller, teach pendant and cables. With a larger work envelope than its sister the RH14-10, it is nearly as fast as the RH14-10 but has a larger 20kg payload which makes it perfect for welding, cutting, assembly, handling, marking or even grinding applications. The key impressive feature here is that the robot body contains an internal dual-circuit flexible and resilient gas pipe which allows superb flexibility and excellent reach whilst welding those hard to reach seams.

The teach pendant provides a user friendly, visual operation interface to enable easy robot programming.

Integrated with enough digital outputs and inputs to get your weld production automated, the robot comes with a 5000W built in 3 phase transformer and a 3 -phase filter to ensure no electromagnetic interference to its weld application.

Full Description


Robot body weight: 285kgs.

Maximum payload: 20kgs.

Maximum reach: 1720mm.

Joint speed: 159 deg/s to 483 deg/s.

Repeatability: ±0.08mm.

Interface: Digital I/O interface, EtherCAT, 22 input / output (expandable COM). 4-way 0~10V analog output, 12-bit accuracy (expandable COM). Two-way encoder signal interface (position tracking).  Two-way encoder signal interface (position tracking).  Ethernet communication interface.

Protection class: Body IP54.  Wrist IP67.

Working temperature: 0-45 degrees C.

Power supply: Three phase 380V AC 50-60HZ

Cost is inclusive of MEGMEET Ehave weld unit and all welding accessories!

These robots offer excellent value for money and with its greater reach and torque allowance, the robot is perfectly suited to welding, cutting, assembly, handling, marking or even grinding.
